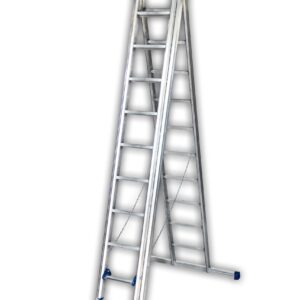

Model: 33-14:

• Height A (m): 4.30
• Working Height A (m): 5.50
• Height B (m): 7.40
• Working Height B (m): 8.60
• Height C (m): 10.70
• Working Height C (m): 11.90
• 1st & 2nd Section Width (cm): 50.00
• 3rd Section Width (cm): 43.00
• Number of Rungs: 14 * 3
• Approx. Weight (kg): 37.00

Technical Details:

• Beam Dimensions: 60×22 mm (33-6 to 33-9), 73×28 mm (33-10 to 33-14)
• Square Rung Profile: 28×28 mm
• Maximum Load Capacity: 175 kg
• Equipment: Aluminum special Profile

• Datasheet: Industrial Ladder Types Datasheets
